GATE Paper 2011 Mechanical Engineering

The parabolic arc is revolved around the x-axis. The volume of the solid of revolution is

The Blasius equation, is a

The value of the integral is

The modulus of the complex number is

The function

Mobility of a statically indeterminate structure is

There are two points P and Q on a planar rigid body. The relative velocity between the two points

The state of plane-stress at a point is given by The maximum shear stress in MPa is

Which of the following statements is INCORRECT?

The natural frequency of a spring-mass system on earth is The natural frequency of this system on the moon is

Tooth interference in an external involute spur gear pair can be reduced by

For the stability of a floating body, under the influence of gravity alone, which of the following is TRUE?

The maximum velocity of a one-dimensional incompressible fully developed viscous flow, between two fixed parallel plates, is The mean velocity of the flow is

A phenomenon is modeled using n dimensional variables with k primary dimensions. The number of non-dimensional variables is

A turbo-charged four-stroke direct injection diesel engine has a displacement volume of (25.9litres). The engine has an output of 950kW at 2200rpm. The mean effective pressure in MPa is closest to

One kilogram of water at room temperature is brought into contact with a high temperature thermal reservoir. The entropy change of the universe is

A hydraulic turbine develops 1000kW power for a head of 40m. If the head is reduced to 20m, the power developed (in kW) is

The material property which depends only on the basic crystal structure is

In a gating system, the ratio 1:2:4 represents

A shaft has a dimension, The respective values of fundamental deviation and tolerance are

In a CNC program block, N002 G02 G91 X40 Z40…, G02 AND G91 refer to

The demand and forecast for February are 12000 and 10275, respectively. Using single exponential smoothening method (smoothening coefficient = 0.25), forecast for the month of March is

Little’s law is relationship between

Vehicle manufacturing assembly line is an example of

Simplex method of solving linear programming problem uses

Note: All length dimensions shown in the figures are in mm unless otherwise specified. Figures are not drawn to scale.

Torque exerted on a flywheel over a cycle is listed in the table. Flywheel energy (in J per unit cycle) using Simpson’s rule is

One of the eigen vectors of the matrix is

Velocity vector of a flow field is given as the velocity vector at (1,1,1) is

The Laplace Transform of a function The f(t) is

A box contains 2 washers, 3 nuts and 4 bolts. Items are drawn from the box at random one at a time without replacement. The probability of drawing 2 washers first followed by 3 nuts and subsequently the 4 bolts is

A band brake having band-width of 80mm, drum diameter of 250mm, coefficient of friction of 0.25 and angle of wrap of 270 degrees is required to exert a friction torque of 1000N-m. The maximum tension (in kN) developed in the band is

A bracket (shown in figure) is rigidly mounted on wall using four rivets. Each rivet is 6mm in diameter and has an effective length of 12mm.


Direct shear stress (in MPa) in the most heavily loaded rivet is

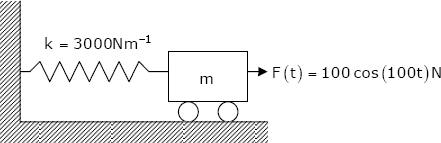

A mass m attached to a spring is subjected to a harmonic force as shown in figure. The amplitude of the forced motion is observed to be 50mm. the value of m (in kg) is

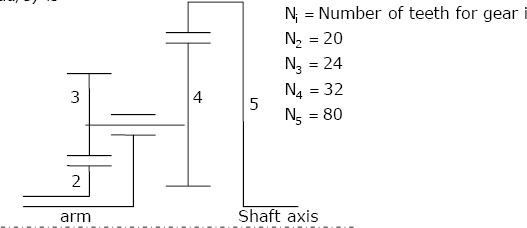

For the epicyclic gear arrangement shown in the figure, clockwise (CW) and clockwise (CCW). The angular velocity (in rad/s) is

A lightly loaded full journal bearing has a journal of 50mm, bush bore of 50.05mm and bush length of 20mm. if rotational speed of journal is 1200rpm and average viscosity of liquid lubricant is 0.03 Pa s, the power loss (in W) will be

For the configuration shown, the angular velocity of link AB is 10 rad/s counterclockwise. The magnitude of the relative sliding velocity of slider B with respect to rigid link CD is

A smooth pipe of diameter 200mm carries water. The pressure in the pipe at section S1 (elevation: 10m) is 50kPa. At Section S2 (elevation: 12m) the pressure is 20kPa and velocity is Density of water is and acceleration due to gravity is Which of the following is TRUE?

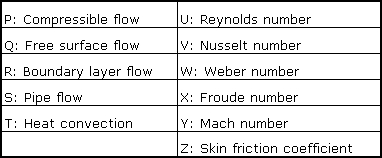

Match the following

A mono-atomic ideal gas ( = 1.67, molecular weight = 40) is compressed adiabatically from 0.1MPa, 300K to 0.2MPa . The universal gas constant is The work of compression of the gas (in ) is

Consider the following two processes:
a. A heat source at 1200K loses 2500kJ of heat to sink at 800K
b. A heat source at 800K loses 2000kJ of heat to sink at 500K
Which of the following statements is TRUE?

A fin has 5mm diameter and 100mm length. The thermal conductivity of fin material is One end of the fin is maintained at and its remaining surface is exposed to ambient air at if the convective heat transfer coefficient is the heat loss (in W) from the fin is

A moist air sample has dry bulb temperature of and specific humidity of 11.5g water vapour per kg dry air. Assume molecular weight of air as 28.93. If the saturation vapour pressure of water at is 4.24kPa and the total pressure is 90kPa, then the relative humidity (in %) of air sample is

Two pipes of inner diameter 100mm and outer diameter 110mm each joined by flash butt welding using 30V power supply. At the interface, 1mm of material melts from each pipe which has a resistance of If the unit melt energy is then time required for welding in seconds is

For tool A, Taylor’s tool life exponent (n) is 0.45 and constant (K) is 90. Similarly for tool B, n=0.3 and K=60. The cutting speed (in m/min) above which tool A will have a higher tool life than tool B is

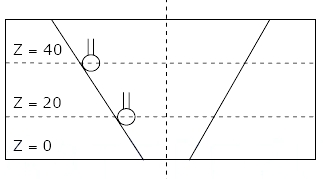

A taper hole is inspected using a CMM, with a probe of 2mm diameter. At a height, Z=10mm from the bottom, 5 points are touched and a diameter of circle (not compensated for probe size) is obtained as 20mm. similarly, a 40mm diameter is obtained at a height Z=40mm. the smaller diameter (in mm) of hole at Z=0 is

Annual demand for window frames is 10000. Each frame costs Rs. 200 and ordering cost is Rs. 300 per order. Inventory holding cost is Rs. 40 per frame per year. The supplier is willing to offer 2% discount if the order quantity is 1000 or more, and 4% if order quantity is 2000 or more. If the total cost is to be minimized, the retailer should

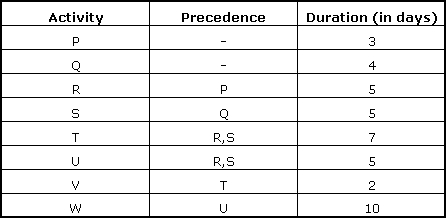

The project activities, precedence relationships and durations are described in the table. The critical path of the project is

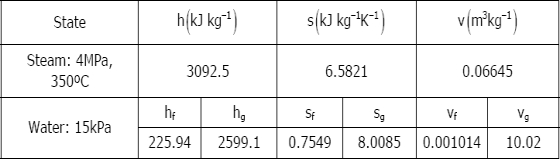

Directions for next two questions: In a steam power plant operating on the Rankine cycle, steam enters the turbine at 4MPa, and exits at a pressure of 15kPa. Then it enters the condenser and exits as saturated water. Next, a pump feeds back the water to the boiler. The adiabatic efficiency of the turbine is 90%. The thermodynamic states of water and steam are given in the table.



h is specific enthalpy, s is specific entropy and v the specific volume; subscripts f and g denote saturated liquid state and saturated vapour state.

The net work output of the cycle is

Heat supplied to the cycle is

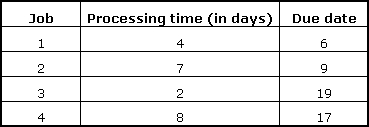

Directions for next two questions: Four jobs are to be processed on a machine as per data listed in the table.



If the Earliest Due Date (EDD) rule is used to sequence the jobs, the number of jobs delayed is

Using the Shortest Processing Time (SPT) rule, total tardiness is

Directions for next two questions: A massless beam has a loading pattern as shown in the figure. The beam is of rectangular cross-section with a width of 30mm and height of 100mm.



The maximum bending moment occurs at

The maximum magnitude of bending stress (in MPa) is given by

Directions for next two questions: In a shear cutting operation, a sheet of 5mm thickness is cut along a length of 200mm. The cutting blade is 400mm long and zero-shear (S=0) is provided on the edge. The ultimate shear strength of the sheet is 100MPa and penetration to thickness ratio is 0.2. Neglect friction.



Assuming force vs displacement curve to be rectangular, the work done (in J) is

A shear of 20mm (S=20mm) is now provided on the blade. Assuming force vs displacement curve to be trapezoidal, the maximum force (in kN) exerted is

25 persons are in a room. 15 of them play hockey, 17 of them play football and 10 of them play both hockey and football. Then the number of persons playing neither hockey nor football is:

Choose the most appropriate word from the options given below to complete the following sentence:
If we manage to …............. our natural resources, we would leave a better planet for our children.

The question below consists of a pair of related words followed by four pairs of words. Select the pair that best expresses the relation in the original pair.
Unemployed: Worker

Which of the following options is the closest in meaning to the word below:
Circuitous

Choose the most appropriate word from the options given below to the complete the following sentence:
His rather casual remarks on politics ….................. his lack of seriousness about the subject.

Hari (H), Gita (G), Irfan (I) and Saira (S) are siblings (i.e. brothers and sisters). All were born on 1st January. The age difference between any two successive siblings (that is born one after another) is less than 3 years. Given the following facts:
i. Hari’s age + Gita’s age > Irfan’s age + Saira’s age
ii. The age difference between Gita and Saira is 1 year. However, Gita is not the oldest and Saira is not the youngest.
iii. There are no twins.
In what order were they born (oldest first)?

5 skilled workers can build a wall in 20days; 8 semi-skilled workers can build a wall in 25 days; 10 unskilled workers can build a wall in 30days. If a team has 2 skilled, 6 semi-skilled and 5 unskilled workers, how long will it take to build the wall?

Modern warfare has changed from large scale clashes of armies to suppression of civilian populations. Chemical agents that do their work silently appear to be suited to such warfare; and regretfully, there exist people in military establishments who think that chemical agents are useful tools for their cause.
Which of the following statements best sums up the meaning of the above passage:

Given digits 2,2,3,3,4,4,4,4 how many distinct 4 digit numbers greater than 3000 can be formed?

If 137+276=435 how much is 731+672?
